Modelica.Electrical.Analog.Examples.Utilities

Information

This package contains utilities ...

Main Authors:

Christoph Clauß <clauss@eas.iis.fhg.de>
André Schneider <schneider@eas.iis.fhg.de>
Fraunhofer Institute for Integrated Circuits
Design Automation Department
Zeunerstraße 38
D-01069 Dresden

Version:

$Id: Modelica_Electrical_Analog_Examples_Utilities.html,v 1.11 2002/12/17 15:10:15 Hans Exp $

Copyright:

Copyright © 1998-2002, Modelica Association and Fraunhofer-Gesellschaft.
The Modelica package is free software; it can be redistributed and/or modified under the terms of the Modelica license, see the license conditions and the accompanying disclaimer in the documentation of package Modelica in file "Modelica/package.mo".

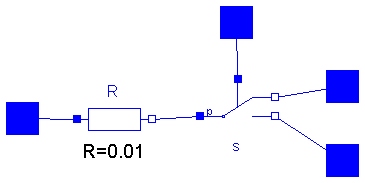

Modelica.Electrical.Analog.Examples.Utilities.RealSwitch

Modelica definition

model RealSwitch
  Ideal.ControlledIdealCommutingSwitch S(level=2.5);
  Basic.Resistor R(R=0.01);
  Interfaces.Pin p;
  Interfaces.Pin n1;
  Interfaces.Pin n2;
  Interfaces.Pin control;
equation
  connect(p, R.p);
  connect(R.n, S.p);
  connect(n1, S.n1);
  connect(n2, S.n2);
  connect(control, S.control);
end RealSwitch;

Modelica.Electrical.Analog.Examples.Utilities.NonlinearResistor

Parameters

Name	Default	Description
Ga		[S]
Gb		[S]
Ve		[V]

Modelica definition

model NonlinearResistor "Chua's resistor"
  extends Interfaces.OnePort;
  parameter SI.Conductance Ga;
  parameter SI.Conductance Gb;
  parameter SI.Voltage Ve;
equation
  i = if (v < -Ve) then Gb*(v + Ve) - Ga*Ve else if (v > Ve) then Gb*(v - Ve)
     + Ga*Ve else Ga*v;
end NonlinearResistor;

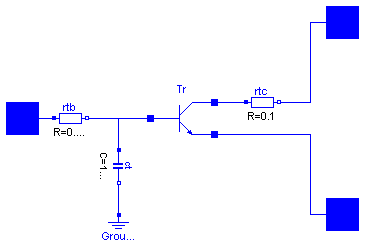

Modelica.Electrical.Analog.Examples.Utilities.Transistor

Modelica definition

model Transistor
  Basic.Resistor rtb(R=0.05);
  Basic.Resistor rtc(R=0.1);
  Basic.Capacitor ct(C=1e-10);
  Semiconductors.NPN Tr(
    Bf=50,
    Br=0.1,
    Is=1e-16,
    Vak=0.02,
    Tauf=0.12e-9,
    Taur=5e-9,
    Ccs=1e-12,
    Cje=0.4e-12,
    Cjc=0.5e-12,
    Phie=0.8,
    Me=0.4,
    Phic=0.8,
    Mc=0.333,
    Gbc=1e-15,
    Gbe=1e-15,
    Vt=0.02585);
  Basic.Ground Ground1;
  Interfaces.Pin c;
  Interfaces.Pin b;
  Interfaces.Pin e;
equation
  connect(rtb.n, Tr.B);
  connect(rtb.n, ct.p);
  connect(ct.n, Ground1.p);
  connect(Tr.C, rtc.p);
  connect(rtc.n, c);
  connect(b, rtb.p);
  connect(Tr.E, e);
end Transistor;

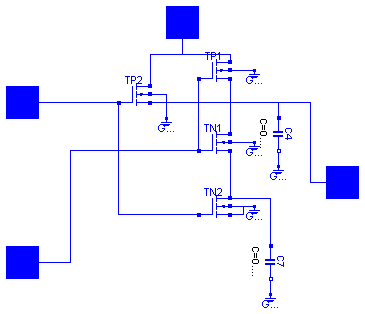

Modelica.Electrical.Analog.Examples.Utilities.Nand

Information

The nand gate is a basic CMOS building block. It consists of four CMOS transistors.

Reference:

Tietze, U.; Schenk, Ch.: Halbleiter-Schaltungstechnik. Springer-Verlag Berlin Heidelberg NewYork 1980, p. 157

Main Authors:

Christoph Clauß <clauss@eas.iis.fhg.de>
André Schneider <schneider@eas.iis.fhg.de>
Fraunhofer Institute for Integrated Circuits
Design Automation Department
Zeunerstraße 38
D-01069 Dresden

Version:

$Id: Modelica_Electrical_Analog_Examples_Utilities.html,v 1.11 2002/12/17 15:10:15 Hans Exp $

Copyright:

Copyright © 1998-2002, Modelica Association and Fraunhofer-Gesellschaft.
The Modelica package is free software; it can be redistributed and/or modified under the terms of the Modelica license, see the license conditions and the accompanying disclaimer in the documentation of package Modelica in file "Modelica/package.mo".

Modelica definition

model Nand "CMOS NAND Gate (see Tietze/Schenk, page 157)"
  Semiconductors.PMOS TP1(
    W=6.5e-6,
    L=3.1e-6,
    Beta=1.05e-5,
    Vt=-1,
    K2=0.41,
    K5=0.8385,
    dW=-2.5e-6,
    dL=-2.1e-6);
  Semiconductors.PMOS TP2(
    W=6.5e-6,
    L=3.1e-6,
    Beta=1.05e-5,
    Vt=-1,
    K2=0.41,
    K5=0.8385,
    dW=-2.5e-6,
    dL=-2.1e-6);
  Semiconductors.NMOS TN1(
    W=6.5e-6,
    L=3.1e-6,
    Beta=4.1e-5,
    Vt=0.8,
    K2=1.144,
    K5=0.7311,
    dW=-2.5e-6,
    dL=-1.5e-6);
  Semiconductors.NMOS TN2(
    W=6.5e-6,
    L=3.1e-6,
    Beta=4.1e-5,
    Vt=0.8,
    K2=1.144,
    K5=0.7311,
    dW=-2.5e-6,
    dL=-1.5e-6);
  Basic.Capacitor C4(C=0.4e-13);
  Basic.Capacitor C7(C=0.4e-13);
  Basic.Ground Gnd;
  Basic.Ground Gnd2;
  Basic.Ground Gnd3;
  Basic.Ground Gnd6;
  Basic.Ground Gnd7;
  Basic.Ground Gnd8;
  Interfaces.Pin x1;
  Interfaces.Pin x2;
  Interfaces.Pin Vdd;
  Interfaces.Pin y;
equation
  connect(TN1.S, TN2.D);
  connect(TN2.B, Gnd.p);
  connect(TN2.D, C7.p);
  connect(TN2.S, Gnd.p);
  connect(TP1.S, TN1.D);
  connect(TP1.G, TN1.G);
  connect(C4.n, Gnd2.p);
  connect(C7.n, Gnd3.p);
  connect(TP2.B, Gnd6.p);
  connect(TN1.B, Gnd7.p);
  connect(TP1.B, Gnd8.p);
  connect(TP2.G, x1);
  connect(TP2.G, TN2.G);
  connect(TN1.G, x2);
  connect(TP2.S, TN1.D);
  connect(TN1.D, C4.p);
  connect(Vdd, TP1.D);
  connect(TP2.D, Vdd);
  connect(C4.p, y);
end Nand;
