include/drake/node.h File Reference

#include <stddef.h>
#include <pelib/template.h>
#include <drake/task.h>

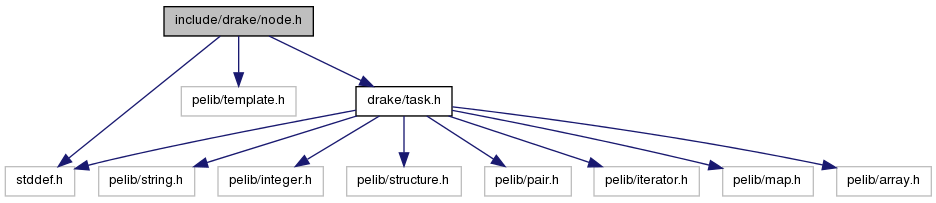

Include dependency graph for node.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	drake_init(name, id)   PELIB_CONCAT_3(name,_init_,id)
#define	drake_start(name, id)   PELIB_CONCAT_3(name,_start_,id)
#define	drake_run(name, id)   PELIB_CONCAT_3(name,_run_,id)
#define	drake_kill(name, id)   PELIB_CONCAT_3(name,_kill_,id)
#define	drake_destroy(name, id)   PELIB_CONCAT_3(name,_destroy_,id)
Functions
int	drake_init (TASK_MODULE, TASK_NAME)(task_t *
int	drake_start (TASK_MODULE, TASK_NAME)(task_t *)
int	drake_run (TASK_MODULE, TASK_NAME)(task_t *)
int	drake_kill (TASK_MODULE, TASK_NAME)(task_t *)
int	drake_destroy (TASK_MODULE, TASK_NAME)(task_t *)
Variables
int void *	aux

---

Define Documentation

#define drake_destroy	(		name,
			id
	)		PELIB_CONCAT_3(name,_destroy_,id)

Definition at line 71 of file node.h.

#define drake_init	(		name,
			id
	)		PELIB_CONCAT_3(name,_init_,id)

Definition at line 67 of file node.h.

#define drake_kill	(		name,
			id
	)		PELIB_CONCAT_3(name,_kill_,id)

Definition at line 70 of file node.h.

#define drake_run	(		name,
			id
	)		PELIB_CONCAT_3(name,_run_,id)

Definition at line 69 of file node.h.

#define drake_start	(		name,
			id
	)		PELIB_CONCAT_3(name,_start_,id)

Definition at line 68 of file node.h.

---

Function Documentation

int drake_destroy	(	TASK_MODULE	,
		TASK_NAME
	)

Finalize the work of a task, deallocate optional memory allocated at initialization. Function prototype as viewed from the module compiler

Parameters:

task	Task being destroyed

Returns:

0 if the function encountered an error

int drake_init	(	TASK_MODULE	,
		TASK_NAME
	)

Task initialization function (as viewed from the module compiler), suitable for optional memory allocation or other slow, but unique operations. Runs before the corresponding stream begins to run

Parameters:

task	Task being initialized @ return 0 if there was an error in initialization

int drake_kill	(	TASK_MODULE	,
		TASK_NAME
	)

Runs after a task stops working, before the corresponding stream stops. Function prototype as viewed from the module compiler

Parameters:

task	Task being killed

Returns:

0 if the function encountered an error

int drake_run	(	TASK_MODULE	,
		TASK_NAME
	)

Main work function of a task (as viewed from the module compiler)

Parameters:

task	Task at work

Returns:

0 if the task must perform more work

int drake_start	(	TASK_MODULE	,
		TASK_NAME
	)

Task first work function (as viewed from the module compiler). Runs after the corresponding stream started to run

Parameters:

task	Task that begins to work @ return 0 if start function must run again before running the main work function

---

Variable Documentation

int void* aux

Definition at line 77 of file node.h.
