skepu::MapOverlap< MapOverlapFunc, T, c_type > Class Template Reference

A class representing the MapOverlap skeleton. More...

#include <mapoverlap.h>

Inheritance diagram for skepu::MapOverlap< MapOverlapFunc, T, c_type >:
Inheritance graph
[legend]

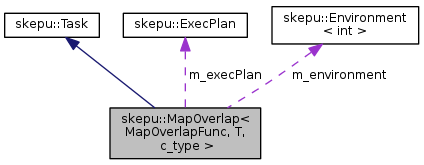

Collaboration diagram for skepu::MapOverlap< MapOverlapFunc, T, c_type >:
Collaboration graph
[legend]

Public Member Functions

 MapOverlap (MapOverlapFunc *mapOverlapFunc)

 MapOverlap (MapOverlapFunc *mapOverlapFunc, Vector< T > *in, Vector< T > *out, EdgePolicy poly, T pad=T())

 ~MapOverlap ()

void run_async ()

void operator() (Vector< T > &input, EdgePolicy poly=CONSTANT, T pad=T())

void operator() (Vector< T > &input, Vector< T > &output, EdgePolicy poly=CONSTANT, T pad=T())

void replaceText (std::string &text, std::string find, std::string replace)

void createOpenCLProgram ()


Static Public Member Functions

static void cpu_func (void *buffers[], void *arg)

static void omp_func (void *buffers[], void *arg)

static void cuda_func (void *buffers[], void *arg)

static void opencl_func (void *buffers[], void *arg)


Detailed Description

template<typename MapOverlapFunc, typename T, skepu_container_type c_type = VECTOR>
class skepu::MapOverlap< MapOverlapFunc, T, c_type >

A class representing the MapOverlap skeleton.

This class defines the MapOverlap skeleton for a Vector container type. MapOverlp is similar to a Map, but each element of the result vector is a function of several adjacent elements of one input vector that reside at a certain constant maximum distance from each other. Once instantiated, it is meant to be used as a function and therefore overloading operator(). There are a few overloaded variants of this operator depending on if a seperate output vector is provided.

It uses StarPU as a backend and choice between different backends can be controlled by using defines. SKEPU_OPENMP can be used to use OpenMP whose support is currently limited in StarPU, hence not recommended, SKEPU_CUDA will register CUDA backend along other defined (atleast CPU if nothing else is defined) SKEPU_OPENCL will register OpenCL backend along other defined (atleast CPU if nothing else is defined) CUDA_ONLY will eliminate all other backends (even CPU) and will force StarPU to use CUDA only. if no above macro is defined, it will use sequential CPU backend.

The MapOverlap skeleton also includes a pointer to an Environment which includes the devices available to execute on.

This class defines the MapOverlap skeleton for a Matrix container type. MapOverlp is similar to a Map, but each element of the result matrix is a function of several (row and/or column) adjacent elements of one input matrix that reside at a certain constant maximum distance from each other. Once instantiated, it is meant to be used as a function and therefore overloading operator(). There are a few overloaded variants of this operator depending on if a seperate output vector is provided.

It uses StarPU as a backend and choice between different backends can be controlled by using defines. SKEPU_OPENMP can be used to use OpenMP whose support is currently limited in StarPU, hence not recommended, SKEPU_CUDA will register CUDA backend along other defined (atleast CPU if nothing else is defined) SKEPU_OPENCL will register OpenCL backend along other defined (atleast CPU if nothing else is defined) CUDA_ONLY will eliminate all other backends (even CPU) and will force StarPU to use CUDA only. if no above macro is defined, it will use sequential CPU backend.

Constructor & Destructor Documentation

template<typename MapOverlapFunc, typename T , skepu_container_type c_type>
skepu::MapOverlap< MapOverlapFunc, T, c_type >::MapOverlap ( MapOverlapFunc *  mapOverlapFunc)

When creating an instance of the MapOverlap skeleton with a Vector container type, a pointer to an overlap user function must be provided. Also the environment is set and if SKEPU_OPENCL is defined, the appropriate OpenCL program is created.

Parameters
mapOverlapFuncA pointer to a valid overlap user function. Will be deleted in the destructor.

References skepu::Environment< T >::getInstance().

Here is the call graph for this function:

template<typename MapOverlapFunc, typename T, skepu_container_type c_type>
skepu::MapOverlap< MapOverlapFunc, T, c_type >::MapOverlap ( MapOverlapFunc *  mapOverlapFunc,
Vector< T > *  in,
Vector< T > *  out,
EdgePolicy  poly,
pad = T()
)

When creating an instance of the MapOverlap skeleton with a Vector container type, a pointer to an overlap user function must be provided. Also the environment is set and if SKEPU_OPENCL is defined, the appropriate OpenCL program is created. This constructor is used to assist in calling map skeleton in a task-parallel skeleton(e.g. farm) by implementing Task class "run_async()" method. The parameters for map call should be specified before e.g. using this constructor.

Parameters
mapOverlapFuncA pointer to a valid overlap user function. Will be deleted in the destructor.
inA pointer to a input Vector object.
outA pointer to a output Vector object.
polyAn EdgePolicy specifying what to do when overlapping elements on the edge.
padA padding value that will be used for edge elements to perform overlap if constant EdgePolicy is used.

References skepu::Environment< T >::getInstance().

Here is the call graph for this function:

template<typename MapOverlapFunc , typename T , skepu_container_type c_type>
skepu::MapOverlap< MapOverlapFunc, T, c_type >::~MapOverlap ( )

When the MapOverlap skeleton with a Vector container type is destroyed, it deletes the user function it was created with. Furthermore, it destroy OpenCL handler and performance model objects (if created) and StarPU codelet.

Member Function Documentation

template<typename MapOverlapFunc , typename T , skepu_container_type c_type>
void skepu::MapOverlap< MapOverlapFunc, T, c_type >::cpu_func ( void *  buffers[],
void *  arg
)
static

A static function used with StarPU codelet for MapOverlap with Vector container and is called by the StarPU if CPU backend is selected for a skeleton invocation.

Parameters
buffersContain all StarPU managed data which in this case consists of one read and one write buffer.
argA read only argument which is used to pass handler to the object as this is a static function.
template<typename MapOverlapFunc , typename T , skepu_container_type c_type>
void skepu::MapOverlap< MapOverlapFunc, T, c_type >::createOpenCLProgram ( )

A function called by the constructor. It creates the OpenCL program for the skeleton and saves the kernel name. The program is built from a string containing the user function (specified when constructing the skeleton) and a generic MapOverlap kernel. The type and function names in the generic kernel are relpaced by user function specific code before it is compiled by the OpenCL JIT compiler.

Also handles the use of doubles automatically by including "#pragma OPENCL EXTENSION cl_khr_fp64: enable" if doubles are used.

References skepu::MapOverlapKernel_CL().

Here is the call graph for this function:

template<typename MapOverlapFunc , typename T , skepu_container_type c_type>
void skepu::MapOverlap< MapOverlapFunc, T, c_type >::cuda_func ( void *  buffers[],
void *  arg
)
static

A static function used with StarPU codelet for MapOverlap with Vector container and is called by the StarPU if CUDA backend is selected for a skeleton invocation.

Parameters
buffersContain all StarPU managed data which in this case consists of one read and one write buffer.
argA read only argument which is used to pass handler to the object as this is a static function.
template<typename MapOverlapFunc , typename T , skepu_container_type c_type>
void skepu::MapOverlap< MapOverlapFunc, T, c_type >::omp_func ( void *  buffers[],
void *  arg
)
static

A static function used with StarPU codelet for MapOverlap with Vector container and is called by the StarPU if OpenMP backend is selected for a skeleton invocation.

Parameters
buffersContain all StarPU managed data which in this case consists of one read and one write buffer.
argA read only argument which is used to pass handler to the object as this is a static function.
template<typename MapOverlapFunc , typename T , skepu_container_type c_type>
void skepu::MapOverlap< MapOverlapFunc, T, c_type >::opencl_func ( void *  buffers[],
void *  arg
)
static

A static function used with StarPU codelet for MapOverlap with Vector container and is called by the StarPU if OpenCL backend is selected for a skeleton invocation.

Parameters
buffersContain all StarPU managed data which in this case consists of one read and one write buffer.
argA read only argument which is used to pass handler to the object as this is a static function.
template<typename MapOverlapFunc , typename T, skepu_container_type c_type>
void skepu::MapOverlap< MapOverlapFunc, T, c_type >::operator() ( Vector< T > &  input,
EdgePolicy  poly = CONSTANT,
pad = T()
)

Performs the MapOverlap on a whole Vector. With itself as output.

Depending on which backend was used, appropriate backend will be registered. In case of multiple backends (e.g. CPU and CUDA) StarPU will decide at runtime which one to use.

Parameters
inputA vector which the mapping will be performed on. It will be overwritten with the result.
polyEdge policy for the calculation, either CONSTANT or CYCLIC.
padIf CONSTANT edge policy, this is the value to pad with.

References skepu::Vector< T >::begin(), skepu::Vector< T >::end(), and skepu::Vector< T >::size().

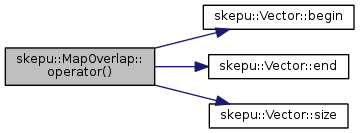

Here is the call graph for this function:

template<typename MapOverlapFunc , typename T, skepu_container_type c_type>
void skepu::MapOverlap< MapOverlapFunc, T, c_type >::operator() ( Vector< T > &  input,
Vector< T > &  output,
EdgePolicy  poly = CONSTANT,
pad = T()
)

Performs the MapOverlap on a whole Vector. With a seperate Vector as output.

Depending on which backend was used, appropriate backend will be registered. In case of multiple backends (e.g. CPU and CUDA) StarPU will decide at runtime which one to use.

Parameters
inputA vector which the mapping will be performed on.
outputThe result vector, will be overwritten with the result and resized if needed.
polyEdge policy for the calculation, either CONSTANT or CYCLIC.
padIf CONSTANT edge policy, this is the value to pad with.

References skepu::Vector< T >::clear(), skepu::Vector< T >::resize(), and skepu::Vector< T >::size().

Here is the call graph for this function:

template<typename MapOverlapFunc , typename T , skepu_container_type c_type>
void skepu::MapOverlap< MapOverlapFunc, T, c_type >::replaceText ( std::string &  text,
std::string  find,
std::string  replace
)

A helper function used by createOpenCLProgram() for MapOverlap with Vector. It finds all instances of a string in another string and replaces it with a third string.

Parameters
textA std::string which is searched.
findThe std::string which is searched for and replaced.
replaceThe relpacement std::string.
template<typename MapOverlapFunc , typename T , skepu_container_type c_type>
void skepu::MapOverlap< MapOverlapFunc, T, c_type >::run_async ( )
virtual

This is an abstract method defined in the Task class which every data-parallel skeleton implements to allow itself to be used within task-parallel skeletons (e.g. farm). It relies on the fact that parameters for the function call are already provided e.g. via constructor or setter methods available in the public interface of the class.

Implements skepu::Task.


The documentation for this class was generated from the following files:
