ModelicaAdditions.HeatFlow1D

Information

This package contains components to model 1-dimensional heat flow and contains the following components:

   Examples             Examples to demonstrate usage
   Interfaces           Connectors and partial models for 1D heat flow
   TemperatureSource    Temperature source (temperature in Kelvin)
   TemperatureSource_C  Celsius temperature source
   HeatResistance       Ideal heat flow without storage of energy
   HeatCapacitance      Ideal heat storage in a block without heat flow
   Convection           Heat flow by convection
   HeatedRod            1-dim. heat flow in a rod with complete insulation
   Sensors              Heatflux and temperature sensors

Main Author:

Martin Otter
Deutsches Zentrum für Luft und Raumfahrt e.V. (DLR)
Institut für Robotik und Mechatronik
Postfach 1116
D-82230 Wessling
Germany
email: Martin.Otter@dlr.de

Release Notes:

• June 15, 2000 by Martin Otter:
  Realized.

Copyright (C) 2000, DLR.

The ModelicaAdditions.HeatFlow1D package is free software; it can be redistributed and/or modified under the terms of the Modelica license, see the license conditions and the accompanying disclaimer in the documentation of package Modelica in file "Modelica/package.mo".

ModelicaAdditions.HeatFlow1D.TemperatureSource

Modelica definition

model TemperatureSource "Temperature source"
  Interfaces.Surface_b surface_b;
  Modelica.Blocks.Interfaces.InPort inPort(final n=1);
equation
  surface_b.T = inPort.signal[1];
end TemperatureSource;

ModelicaAdditions.HeatFlow1D.TemperatureSource_C

Modelica definition

model TemperatureSource_C "Celsius temperature source"
  Interfaces.Surface_b surface_b;
  Modelica.Blocks.Interfaces.InPort inPort(final n=1);
equation
  surface_b.T = inPort.signal[1] - Modelica.Constants.T_zero;
end TemperatureSource_C;

ModelicaAdditions.HeatFlow1D.HeatResistance

Parameters

Name	Default	Description
A		area of heat resistance [m2]
L		length of heat resistance [m]
lambda		thermal conductivity of material [W/(m.K)]

Modelica definition

model HeatResistance "Ideal heat flow without storage of energy"
  parameter SIunits.Area A(min=0) "area of heat resistance";
  parameter SIunits.Length L(min=Modelica.Constants.eps)
    "length of heat resistance";
  parameter SIunits.ThermalConductivity lambda(min=0)
    "thermal conductivity of material";
  Interfaces.Surface_a surface_a;
  Interfaces.Surface_b surface_b;
equation
  surface_a.q = lambda*A/L*(surface_a.T - surface_b.T);
  surface_b.q = -surface_a.q;
end HeatResistance;

ModelicaAdditions.HeatFlow1D.HeatCapacitance

Parameters

Name	Default	Description
m		mass of block [kg]
c		specifc heat capacity of block [J/(kg.K)]
T0	20	initial temperature of block [degC]

Modelica definition

model HeatCapacitance
  "Ideal heat storage in a block without heat flow"
  parameter SIunits.Mass m(min=0) "mass of block";
  parameter SIunits.SpecificHeatCapacity c(min=0)
    "specifc heat capacity of block";
  parameter SIunits.Temp_C T0=20 "initial temperature of block";
  Interfaces.Surface_a surface_a(T(final start=T0 - Modelica.Constants.
          T_zero));
equation
  surface_a.q = c*m*der(surface_a.T);
end HeatCapacitance;

ModelicaAdditions.HeatFlow1D.Convection

Parameters

Name	Default	Description
P		perimeter of convection surface [m]
L		length of element [m]
h		convection heat transfer coefficient [W/(m2.K)]

Modelica definition

model Convection "Heat flow by convection"
  parameter SIunits.Length P "perimeter of convection surface";
  parameter SIunits.Length L "length of element";
  parameter SIunits.CoefficientOfHeatTransfer h
    "convection heat transfer coefficient";
  Interfaces.Surface_a surface_a;
  Interfaces.Surface_b surface_b;
equation
  surface_a.q = h*P*L*(surface_a.T - surface_b.T);
  surface_b.q = -surface_a.q;
end Convection;

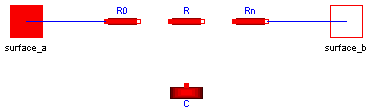

ModelicaAdditions.HeatFlow1D.HeatedRod

Parameters

Name	Default	Description
n	5	number of heat capacity elements (= number of states)
L		lenght of rod [m]
A		area of rod [m2]
rho		density of rod material [kg/m3]
lambda		thermal conductivity of material [W/(m.K)]
c		specifc heat capacity [J/(kg.K)]
T0		initial temperature [degC]

Modelica definition

model HeatedRod
  "1-dimensional heat flow in a rod with complete insulation"
  parameter Integer n(min=1) = 5
    "number of heat capacity elements (= number of states)";
  parameter SIunits.Length L(min=Modelica.Constants.eps)
    "lenght of rod";
  parameter SIunits.Area A(min=0) "area of rod";
  parameter SIunits.Density rho(min=0) "density of rod material";
  parameter SIunits.ThermalConductivity lambda(min=0)
    "thermal conductivity of material";
  parameter SIunits.SpecificHeatCapacity c(min=0)
    "specifc heat capacity";
  parameter SIunits.Temp_C T0 "initial temperature";
  SIunits.Temp_C T[n + 2]
    "Temperature at the grid points (of the heat capacity elements and the borders)"
    ;
  SIunits.Position s[n + 2] "Distance between surface_a and T[i]";

protected
  parameter SIunits.Length Lelem=L/n
    "length of a HeatCapacity element";
  parameter SIunits.Mass mElem=A*Lelem*rho
    "mass of a HeatCapacity element";
public
  Interfaces.Surface_a surface_a;
  Interfaces.Surface_b surface_b;
protected
  HeatResistance R0(
    A=A,
    L=Lelem/2,
    lambda=lambda);
  HeatResistance Rn(
    A=A,
    L=Lelem/2,
    lambda=lambda);
  HeatResistance R[n - 1](
    A=A,
    L=Lelem,
    lambda=lambda);
  HeatCapacitance C[n](
    m=mElem,
    c=c,
    T0=T0);
equation
  connect(surface_a, R0.surface_a);
  connect(surface_b, Rn.surface_b);
  // connect R0 and Rn
  connect(R0.surface_b, C[1].surface_a);
  connect(Rn.surface_a, C[n].surface_a);

  // connect R[i] and C[i]
  for i in 1:n - 1 loop
    connect(C[i].surface_a, R[i].surface_a);
    connect(R[i].surface_b, C[i + 1].surface_a);
  end for;

  // determine temperature and position vector
  T[1] = surface_a.T;
  T[n + 2] = surface_b.T;
  for i in 1:n loop
    T[i + 1] = C[i].surface_a.T - Modelica.Constants.T_zero;
  end for;
  s[1] = 0;
  s[2] = Lelem/2;
  s[n + 2] = L;
  for i in 3:n + 1 loop
    s[i] = Lelem/2 + (i - 2)*Lelem;
  end for;
end HeatedRod;
