skepu::Matrix< T > Class Template Reference

A matrix container class (2D matrix), internally uses 1D container (std::vector). More...

#include <matrix.h>

Classes
class	col_iterator
class	iterator
	An matrix iterator class that tranverses row-wise. More...
class	proxy_elem
	A proxy class representing one element of Matrix. More...

Public Member Functions
starpu_data_handle_t	registerMatrix ()
	To register Matrix with StarPU. Does not create partitions of Matrix.
void	unregisterMatrix (bool update=true)
starpu_data_handle_t	registerPartitions (int _xparts=1, int _yparts=1)
	To register Matrix to StarPU. This method can create partitions of the matrix.
T *	GetArrayRep ()
void	randomize (int min=0, int max=RAND_MAX)
	Randomizes the Matrix. More...
void	save (const std::string &filename)
	Saves content of Matrix to a file. More...
void	load (const std::string &filename, int rowWidth, int numRows=0)
	Loads the Matrix from a file. More...
	~Matrix ()
	Matrix (size_type _rows, size_type _cols)
	Matrix (size_type _rows, size_type _cols, const T &val)
	Matrix (const Matrix< T > &copy)
size_type	size () const
size_type	total_rows () const
size_type	total_cols () const
void	change_layout ()
void	resize (size_type _rows, size_type _cols, T val=T())
Matrix< T > &	operator= (Matrix< T > &other)
Matrix< T > &	operator= (const T &elem)
bool	operator== (const Matrix< T > &c1)
bool	operator!= (const Matrix< T > &c1)
bool	operator< (const Matrix< T > &c1)
bool	operator> (const Matrix< T > &c1)
bool	operator<= (const Matrix< T > &c1)
bool	operator>= (const Matrix< T > &c1)
Matrix< T > &	subsection (size_type row, size_type col, size_type rowWidth, size_type colWidth)
iterator	begin ()
const_iterator	begin () const
iterator	begin (unsigned row)
const_iterator	begin (unsigned row) const
iterator	end ()
const_iterator	end () const
iterator	end (unsigned row)
const_iterator	end (unsigned row) const
std::pair< const_iterator, const_iterator >	col_iterator_range ()
col_iterator	col_begin ()
col_iterator	col_end ()
size_type	capacity () const
void	flush ()
bool	empty () const
void	clear ()
void	swap (Matrix< T > &from)
T &	operator[] (const size_type index)
void	acquireRead () const
void	acquireReadWrite ()
const Matrix< T > &	operator+= (const Matrix< T > &rhs)
const Matrix< T > &	operator+= (const T &rhs)
const Matrix< T > &	operator-= (const Matrix< T > &rhs)
const Matrix< T > &	operator-= (const T &rhs)
const Matrix< T > &	operator*= (const Matrix< T > &rhs)
const Matrix< T > &	operator*= (const T &rhs)
const Matrix< T > &	operator/= (const Matrix< T > &rhs)
const Matrix< T > &	operator/= (const T &rhs)
const Matrix< T > &	operator%= (const Matrix< T > &rhs)
const Matrix< T > &	operator%= (const T &rhs)

Friends
std::ostream &	operator<< (std::ostream &os, Matrix< T > &matrix)
	Overloaded stream operator, for testing purposes. More...

Detailed Description

template<typename T>
class skepu::Matrix< T >

A matrix container class (2D matrix), internally uses 1D container (std::vector).

A skepu::Matrix is a 2D container that internally stores in a 1D std::vector. Its interface and behaviour is largely compatible with skepu::Vector and std::vector but with some additions and variations for 2D. Instead of the regular element, it sometimes returns a proxy element so it can distinguish between reads and writes. In this version, it just register/unregister data back to StarPU and does not keep track of data by itself (no lazy memory copying).

Constructor & Destructor Documentation

template<typename T>

skepu::Matrix< T >::~Matrix ( )

inline

Destructor, used to deallocate memory mainly, device memory.

References skepu::Matrix< T >::total_cols(), and skepu::Matrix< T >::total_rows().

Here is the call graph for this function:

template<typename T>

skepu::Matrix< T >::Matrix ( size_type  _rows, size_type  _cols  )

inline

Constructor, used to allocate memory ($_rows * _cols$).

Parameters

_rows	Number of rows in the matrix.
_cols	Number of columns in the matrix.

template<typename T>

skepu::Matrix< T >::Matrix ( size_type  _rows, size_type  _cols, const T &  val  )

inline

Constructor, used to allocate memory ($_rows * _cols$). With a value ot initialize all elements.

Parameters

_rows	Number of rows in the matrix.
_cols	Number of columns in the matrix.
val	A value to initialize all elements.

template<typename T>

skepu::Matrix< T >::Matrix ( const Matrix< T > &  copy )

inline

Copy Constructor, used to assign copy of another matrix.

Parameters

copy	Matrix that is being assigned.

Update the matrix before assigning it to assign latest copy.

References skepu::Matrix< T >::acquireRead(), skepu::Matrix< T >::total_cols(), and skepu::Matrix< T >::total_rows().

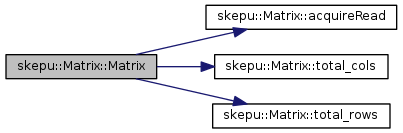

Here is the call graph for this function:

Member Function Documentation

template<typename T >

void skepu::Matrix< T >::acquireRead ( ) const

inline

Ensure that data is most updated for reading purpose on CPU

template<typename T >

void skepu::Matrix< T >::acquireReadWrite ( )

inline

Ensure that data is most updated for reading and writing purpose on CPU

template<typename T >

Matrix< T >::iterator skepu::Matrix< T >::begin

(

)

Please refer to the documentation of std::vector and skepu::Matrix::iterator.

template<typename T >

Matrix< T >::const_iterator skepu::Matrix< T >::begin

(

)

const

Please refer to the documentation of std::vector and skepu::Matrix::iterator.

template<typename T >

Matrix< T >::iterator skepu::Matrix< T >::begin

(

unsigned

row

)

Please refer to the documentation of std::vector and skepu::Matrix::iterator. Uses row to get an iterator for that row.

Parameters

row	The index of row from where to start iterator.

template<typename T >

Matrix< T >::const_iterator skepu::Matrix< T >::begin

(

unsigned

row

)

const

Please refer to the documentation of std::vector and skepu::Matrix::iterator. Uses row to get an iterator for that row.

Parameters

row	The index of row from where to start iterator.

template<typename T >

Matrix< T >::size_type skepu::Matrix< T >::capacity

(

)

const

Please refer to the documentation of std::vector.

template<typename T>

void skepu::Matrix< T >::change_layout ( )

inline

A small utility to change rows and columns numbers with each other. A Matrix (4x7) will become (7x4) after this function call without changing the actual values. Not similar to transpose where you actually change the values.

template<typename T >

void skepu::Matrix< T >::clear

(

)

Please refer to the documentation of std::vector. Invalidates all copies before clear.

template<typename T >

Matrix< T >::col_iterator skepu::Matrix< T >::col_begin

(

)

This works by taking a transpose of current matrix.

template<typename T >

Matrix< T >::col_iterator skepu::Matrix< T >::col_end

(

)

This works by taking a transpose of current matrix.

template<typename T >

std::pair< typename Matrix< T >::const_iterator, typename Matrix< T >::const_iterator > skepu::Matrix< T >::col_iterator_range

(

)

This works by taking a transpose of current matrix. Returns begin and end iterator as std::pair. Can be used to make read-onkly traversal.

template<typename T >

bool skepu::Matrix< T >::empty

(

)

const

Please refer to the documentation of std::vector.

template<typename T >

Matrix< T >::iterator skepu::Matrix< T >::end

(

)

Please refer to the documentation of std::vector and skepu::Matrix::iterator.

template<typename T >

Matrix< T >::const_iterator skepu::Matrix< T >::end

(

)

const

Please refer to the documentation of std::vector and skepu::Matrix::iterator.

template<typename T >

Matrix< T >::iterator skepu::Matrix< T >::end

(

unsigned

row

)

Please refer to the documentation of std::vector and skepu::Matrix::iterator. Get iterator to last element of row.

Parameters

row	Index of row the iterator will point to the last element.

template<typename T >

Matrix< T >::const_iterator skepu::Matrix< T >::end

(

unsigned

row

)

const

Please refer to the documentation of std::vector and skepu::Matrix::iterator. Get iterator to last element of row.

Parameters

row	Index of row the iterator will point to the last element.

template<typename T >

void skepu::Matrix< T >::flush

(

)

Flushes the matrix, synchronizing it with the device then release all device allocations.

template<typename T>

T* skepu::Matrix< T >::GetArrayRep ( )

inline

Get array representation

template<typename T>

void skepu::Matrix< T >::load ( const std::string &  filename, int  rowWidth, int  numRows = 0  )

inline

Loads the Matrix from a file.

Reads a variable number of elements from a file. In the file, all elemets should be in ASCII on one line with whitespace between each element. Mainly for testing purposes.

Parameters

filename	Name of file to save to.
rowWidth	The width of a row. All rows get same amount of width.
numRows	The number of rows to be loaded. Default value 0 means all rows.

References skepu::Matrix< T >::clear(), and skepu::Matrix< T >::size().

Here is the call graph for this function:

template<typename T>

bool skepu::Matrix< T >::operator!=

(

const Matrix< T > &

c1

)

Please refer to the documentation of std::vector.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

const Matrix< T > & skepu::Matrix< T >::operator%=

(

const Matrix< T > &

rhs

)

Taking Mod with rhs matrix, element wise to current matrix. Two matrices must be of same size.

Parameters

rhs	The value which is used in taking mod to current matrix.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

const Matrix< T > & skepu::Matrix< T >::operator%=

(

const T &

rhs

)

Taking Mod with a scalar value to all elements in the current matrix.

Parameters

rhs	The value which is used in taking mod to current matrix.

template<typename T>

const Matrix< T > & skepu::Matrix< T >::operator*=

(

const Matrix< T > &

rhs

)

Multiplies rhs matrix operation element wise to current matrix. Two matrices must be of same size. NB it is not matrix multiplication

Parameters

rhs	The matrix which is used in multiplication to current matrix.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

const Matrix< T > & skepu::Matrix< T >::operator*=

(

const T &

rhs

)

Multiplies a scalar value to all elements in the current matrix.

Parameters

rhs	The value which is used in multiplication to current matrix.

template<typename T>

const Matrix< T > & skepu::Matrix< T >::operator+=

(

const Matrix< T > &

rhs

)

Add rhs matrix operation element wise to current matrix. Two matrices must be of same size.

Parameters

rhs	The matrix which is used in addition to current matrix.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

const Matrix< T > & skepu::Matrix< T >::operator+=

(

const T &

rhs

)

Adds a scalar value to all elements in the current matrix.

Parameters

rhs	The value which is used in addition to current matrix.

template<typename T>

const Matrix< T > & skepu::Matrix< T >::operator-=

(

const Matrix< T > &

rhs

)

Subtract rhs matrix operation element wise to current matrix. Two matrices must be of same size.

Parameters

rhs	The matrix which is used in subtraction to current matrix.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

const Matrix< T > & skepu::Matrix< T >::operator-=

(

const T &

rhs

)

Subtracts a scalar value to all elements in the current matrix.

Parameters

rhs	The value which is used in subtraction to current matrix.

template<typename T>

const Matrix< T > & skepu::Matrix< T >::operator/=

(

const Matrix< T > &

rhs

)

Divides rhs matrix operation element wise to current matrix. Two matrices must be of same size. NB it is not matrix multiplication

Parameters

rhs	The matrix which is used in division to current matrix.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

const Matrix< T > & skepu::Matrix< T >::operator/=

(

const T &

rhs

)

Divides a scalar value to all elements in the current matrix.

Parameters

rhs	The value which is used in division to current matrix.

template<typename T>

bool skepu::Matrix< T >::operator<

(

const Matrix< T > &

c1

)

Please refer to the documentation of std::vector.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

bool skepu::Matrix< T >::operator<=

(

const Matrix< T > &

c1

)

Please refer to the documentation of std::vector.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

Matrix< T > & skepu::Matrix< T >::operator=

(

Matrix< T > &

other

)

copy matrix,,, copy row and column count as well along with data

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

Matrix< T > & skepu::Matrix< T >::operator=

(

const T &

elem

)

To initialize a matrix with some scalar value.

Parameters

elem	The element you want to assign to all matrix.

template<typename T>

bool skepu::Matrix< T >::operator==

(

const Matrix< T > &

c1

)

Please refer to the documentation of std::vector.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

bool skepu::Matrix< T >::operator>

(

const Matrix< T > &

c1

)

Please refer to the documentation of std::vector.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

bool skepu::Matrix< T >::operator>=

(

const Matrix< T > &

c1

)

Please refer to the documentation of std::vector.

References skepu::Matrix< T >::acquireRead().

Here is the call graph for this function:

template<typename T>

T & skepu::Matrix< T >::operator[]

(

const size_type

index

)

Does not care about synchronizing with device. Can be used when accessing many elements quickly so that no synchronization overhead effects performance. Make sure to properly synch with device by calling updateHost etc before use.

Parameters

index

Index of element assuming continuous Matrix row-wise storage. To facilitate access using single indexing

template<typename T>

void skepu::Matrix< T >::randomize ( int  min = 0, int  max = RAND_MAX  )

inline

Randomizes the Matrix.

Sets each element of the Matrix to a random number between min and max. The numbers are generated as integers but are cast to the type of the matrix.

Parameters

min	The smallest number an element can become.
max	The largest number an element can become.

References skepu::Matrix< T >::size(), and skepu::Matrix< T >::unregisterMatrix().

Here is the call graph for this function:

template<typename T>

void skepu::Matrix< T >::resize	(	size_type	_rows,
		size_type	_cols,
		T	val = T()
	)

resize matrix,,, invalidates all copies before resizing.

template<typename T>

void skepu::Matrix< T >::save ( const std::string &  filename )

inline

Saves content of Matrix to a file.

Outputs the matrix as text on one line with space between elements to the specified file. Mainly for testing purposes.

Parameters

filename

Name of file to save to.

template<typename T>

size_type skepu::Matrix< T >::size ( ) const

inline

Returns total size of Matrix.

Returns

size of the Matrix.

template<typename T>

Matrix< T > & skepu::Matrix< T >::subsection	(	size_type	row,
		size_type	col,
		size_type	rowWidth,
		size_type	colWidth
	)

To get a subsection of matrix. This will creat a separate copy.

Parameters

row	Index of row to get.
rowWidth	Width of the row of new Matrix.
col	Index of column to get.
colWidth	Width of column of new Matrix.

References skepu::Matrix< T >::total_cols(), and skepu::Matrix< T >::total_rows().

Here is the call graph for this function:

template<typename T>

void skepu::Matrix< T >::swap

(

Matrix< T > &

from

)

Please refer to the documentation of std::vector. Updates and invalidate both Matrices before swapping.

References skepu::Matrix< T >::unregisterMatrix().

Here is the call graph for this function:

template<typename T>

size_type skepu::Matrix< T >::total_cols ( ) const

inline

Returns total number of columns in the Matrix.

Returns

columns in the Matrix.

template<typename T>

size_type skepu::Matrix< T >::total_rows ( ) const

inline

Returns total number of rows in the Matrix.

Returns

rows in the Matrix.

template<typename T>

void skepu::Matrix< T >::unregisterMatrix ( bool  update = true )

inline

Used to unregister data handle with StarPU (pass "false" to not ensure most updated value is returned back)

Friends And Related Function Documentation

template<typename T>

std::ostream& operator<< ( std::ostream &  os, Matrix< T > &  matrix  )

friend

Overloaded stream operator, for testing purposes.

Outputs the matrix rowwise having one row on each line.

---

The documentation for this class was generated from the following files:

• include_starpu/skepu/matrix.h
• include_starpu/skepu/src/matrix.inl
