This package contains example models to demonstrate the usage of the Modelica.Mechanics.Rotational package. Open the models and simulate them according to the provided description in the models. The following demo models are present:
First First example using simple, basic elements Friction Example to demonstrate usage of a clutch and a brake CoupledClutches Example to demonstrate usage of 3 dynamically coupled clutches.
Release Notes:
Copyright (C) 1999-2000, Modelica Association and DLR.
The Modelica package is free software; it can be redistributed and/or modified under the terms of the Modelica license, see the license conditions and the accompanying disclaimer in the documentation of package Modelica in file "Modelica/package.mo".

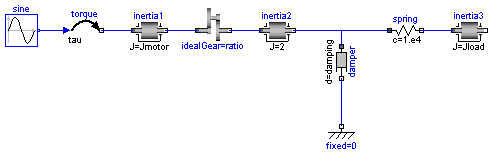

The drive train consists of a motor inertia which is driven by a sine-wave motor torque. Via a gearbox the rotational energy is transmitted to a load inertia. Elasticity in the gearbox is modelled by a spring element. A linear damper is used to model the damping in the gearbox bearing.
Note, that a force component (like the damper of this example) which is acting between a shaft and the housing has to be fixed in the housing on one side via component Fixed.
Simulate for 1 second and plot the following variables:
angular velocities of inertias inertia2 and 3: inertia2.w, inertia3.w
Release Notes:
Name | Default | Description |
---|---|---|
amplitude | 10 | |
freqHz | 5 | [Hz] |
Jmotor | 0.1 | [kg.m2] |
Jload | 2 | [kg.m2] |
ratio | 10 | |
damping | 10 |
model First "First example: simple drive train" extends Modelica.Icons.Example; parameter Real amplitude=10; parameter SIunits.Frequency freqHz=5; parameter SIunits.Inertia Jmotor=0.1; parameter SIunits.Inertia Jload=2; parameter Real ratio=10; parameter Real damping=10; Modelica.Mechanics.Rotational.Fixed fixed; Modelica.Mechanics.Rotational.Torque torque; Modelica.Mechanics.Rotational.Inertia inertia1(J=Jmotor); Modelica.Mechanics.Rotational.IdealGear idealGear(ratio=ratio); Modelica.Mechanics.Rotational.Inertia inertia2( J=2, phi(start=0), w(start=0)); Modelica.Mechanics.Rotational.Spring spring(c=1.e4); Modelica.Mechanics.Rotational.Inertia inertia3( J=Jload, phi(start=0), w(start=0)); Modelica.Mechanics.Rotational.Damper damper(d=damping); Modelica.Blocks.Sources.Sine sine(amplitude={amplitude}, freqHz={freqHz}) ; equation connect(torque.flange_b, inertia1.flange_a); connect(inertia1.flange_b, idealGear.flange_a); connect(idealGear.flange_b, inertia2.flange_a); connect(inertia2.flange_b, spring.flange_a); connect(spring.flange_b, inertia3.flange_a); connect(inertia2.flange_b, damper.flange_a); connect(sine.outPort, torque.inPort); connect(damper.flange_b, fixed.flange_b); end First;

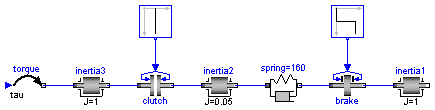

This drive train contains a frictional clutch and a brake. Simulate the system for 1 second using the following initial values (defined already in the model):
inertia1.w = 90 (or brake.w) inertia2.w = 90 inertia3.w = 100
Plot the output signals
tMotor Torque of motor tClutch Torque in clutch tBrake Torque in brake tSpring Torque in spring
as well as the absolute angular velocities of the three inertia components (inertia1.w, inertia2.w, inertia3.w).
Release Notes:
model Friction "Drive train with clutch and brake" extends Modelica.Icons.Example; output SIunits.Torque tMotor "driving torque of inertia3"; output SIunits.Torque tClutch "friction torque of clutch"; output SIunits.Torque tBrake "friction torque of brake"; output SIunits.Torque tSpring "spring torque"; Modelica.Mechanics.Rotational.Torque torque; Modelica.Mechanics.Rotational.Inertia inertia3( J=1, phi(start=0), w(start=100)); Modelica.Mechanics.Rotational.Clutch clutch(fn_max=160); Modelica.Mechanics.Rotational.Inertia inertia2( J=0.05, phi(start=0), w(start=90)); Modelica.Mechanics.Rotational.SpringDamper spring(c=160, d=1); Modelica.Mechanics.Rotational.Inertia inertia1( J=1, phi(start=0), w(start=90)); Modelica.Mechanics.Rotational.Brake brake(fn_max=1600); Modelica.Blocks.Sources.Constant const(k={1}); Modelica.Blocks.Sources.Step step(startTime={0.5}); equation connect(torque.flange_b, inertia3.flange_a); connect(inertia3.flange_b, clutch.flange_a); connect(clutch.flange_b, inertia2.flange_a); connect(inertia2.flange_b, spring.flange_a); connect(spring.flange_b, brake.flange_a); connect(brake.flange_b, inertia1.flange_a); connect(const.outPort, clutch.inPort); connect(step.outPort, brake.inPort); torque.tau = if time < step.startTime[1] then 200*sin(100*time) else 0; tMotor = torque.tau; tClutch = clutch.tau; tBrake = brake.tau; tSpring = spring.tau; end Friction;

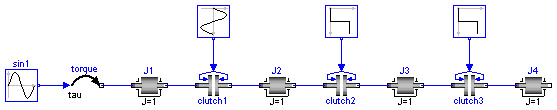

This example demonstrates how variable structure drive trains are handeled. The drive train consists of 4 inertias and 3 clutches, where the clutches are controlled by input signals. The system has 2^3=8 different configurations and 3^3 = 27 different states (every clutch may be in forward sliding, backward sliding or locked mode when the relative angular velocity is zero). By invoking the clutches at different time instances, the switching of the configurations can be studied.
Simulate the system for 1.2 seconds with the following initial values:
J1.w = 10.
Plot the following variables:
angular velocities of inertias (J1.w, J2.w, J3.w, J4.w),
frictional torques of clutches (clutchX.tau),
frictional mode of clutches (clutchX.mode) where
mode = -1/0/+1 means backward sliding, locked, forward sliding.
Release Notes:
Name | Default | Description |
---|---|---|
freqHz | 0.2 | frequency of sine function to invoke clutch1 [Hz] |
T2 | 0.4 | time when clutch2 is invoked [s] |
T3 | 0.9 | time when clutch3 is invoked [s] |
model CoupledClutches "Drive train with 3 dynamically coupled clutches" extends Modelica.Icons.Example; parameter SIunits.Frequency freqHz=0.2 "frequency of sine function to invoke clutch1"; parameter SIunits.Time T2=0.4 "time when clutch2 is invoked"; parameter SIunits.Time T3=0.9 "time when clutch3 is invoked"; Modelica.Mechanics.Rotational.Inertia J1( J=1, phi(start=0), w(start=10)); Modelica.Mechanics.Rotational.Torque torque; Modelica.Mechanics.Rotational.Clutch clutch1(peak=1.1, fn_max=20); Modelica.Blocks.Sources.Sine sin1(amplitude={10}, freqHz={5}); Modelica.Blocks.Sources.Step step1(startTime={T2}); Modelica.Mechanics.Rotational.Inertia J2(J=1); Modelica.Mechanics.Rotational.Clutch clutch2(peak=1.1, fn_max=20); Modelica.Mechanics.Rotational.Inertia J3(J=1); Modelica.Mechanics.Rotational.Clutch clutch3(peak=1.1, fn_max=20); Modelica.Mechanics.Rotational.Inertia J4(J=1); Modelica.Blocks.Sources.Sine sin2( amplitude={1}, freqHz={freqHz}, phase={1.57}); Modelica.Blocks.Sources.Step step2(startTime={T3}); equation connect(clutch1.flange_b, J2.flange_a); connect(J1.flange_b, clutch1.flange_a); connect(clutch2.flange_b, J3.flange_a); connect(J2.flange_b, clutch2.flange_a); connect(clutch3.flange_b, J4.flange_a); connect(J3.flange_b, clutch3.flange_a); connect(sin1.outPort, torque.inPort); connect(torque.flange_b, J1.flange_a); connect(sin2.outPort, clutch1.inPort); connect(step1.outPort, clutch2.inPort); connect(step2.outPort, clutch3.inPort); end CoupledClutches;
