MeterPU::NVML_Energy_Measurement_Controller< device_id > Struct Template Reference

CUDA-enabled GPU Energy Measurement Controller. More...

#include <MeterPU.h>

Inheritance diagram for MeterPU::NVML_Energy_Measurement_Controller< device_id >:

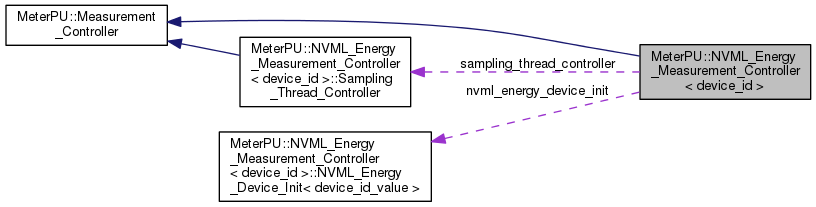

Collaboration diagram for MeterPU::NVML_Energy_Measurement_Controller< device_id >:

Classes
struct	NVML_Energy_Device_Init
class	Sampling_Thread_Controller
	Sampling Thread Controller. More...

Public Member Functions
void	init ()
	Initialize a GPU device. More...
void	start ()
	mark the start of a measurement phase/period. More...
void	stop ()
	mark the end of a measurement phase/period. More...
void	calc ()
	calculate the metric value between start() and stop(). More...
NVML_Energy::Energy_Unit	get_value () const
	Get calculated metric value, require calc() to be called already. More...
void	show_meter_reading () const
	Print the calculated metric value to standard output, requires an invocation of calc() already done. More...

Private Member Functions
	DECLARE_CLASS_NAME ("NVML_Energy_Measurement_Controller")
const CPU_Time::Time_Unit &	get_start_time () const
const CPU_Time::Time_Unit &	get_stop_time () const
void	record_start_time ()
void	record_stop_time ()
CPU_Time::ResultType	diff ()
void	resetDir ()
void	dumpTimeEvent ()
template<class T1 , class T2 >
void	dumpTwoVectors (const std::string &filename, const std::string &header, const T1 &keys, const T2 &values) const
void	dumpOriginalPowerData () const
void	dumpCorrectedPowerData ()
void	removeRedundantSamplesByDistance (const CPU_Time::ResultType &time_distance_ms)
void	correctPowerSamplesByBurtscherApproach ()
void	fillPowerValuesAtStartAndEnd ()
NVML_Energy::Energy_Unit	calTotalArea ()
NVML_Energy::Energy_Unit	calTotalArea (NVML_Energy<>::Hp_Power_DB_Type const &power_db, NVML_Energy<>::Time_DB_Type const &time_db)
NVML_Energy::Energy_Unit	calAreaForOneTrapezoid (NVML_Energy<>::Time_Unit start_time, NVML_Energy<>::Time_Unit end_time, NVML_Energy<>::Hp_Power_Unit start_power, NVML_Energy<>::Hp_Power_Unit end_power)

Private Attributes
NVML_Energy_Device_Init	nvml_energy_device_init
nvmlDevice_t	device
NVML_Energy::Energy_Unit	meter_reading
CPU_Time::Time_Unit	start_time
CPU_Time::Time_Unit	stop_time
std::string	path
NVML_Energy::Hp_Power_DB_Type	correctedPowerDB
Sampling_Thread_Controller	sampling_thread_controller

Detailed Description

template<GPU_Device_Id_Type device_id>
struct MeterPU::NVML_Energy_Measurement_Controller< device_id >

CUDA-enabled GPU Energy Measurement Controller.

It internally use NVML nvmlDeviceGetPowerUsage(), note that not all CUDA-enabled GPU support this functionality, please check your GPU specification.

To calculate the energy value based on power samples obtained by NVML, it implement the techniques described in the following paper:

[1] Martin Burtscher, Ivan Zecena, and Ziliang Zong. 2014. Measuring GPU Power with the K20 Built-in Sensor. In Proceedings of Workshop on General Purpose Processing Using GPUs (GPGPU-7). ACM, New York, NY, USA, Pages 28 , 9 pages. DOI=10.1145/2576779.2576783 http://doi.acm.org/10.1145/2576779.2576783

Member Function Documentation

template<GPU_Device_Id_Type device_id>

NVML_Energy ::Energy_Unit MeterPU::NVML_Energy_Measurement_Controller< device_id >::calAreaForOneTrapezoid ( NVML_Energy<>::Time_Unit  start_time, NVML_Energy<>::Time_Unit  end_time, NVML_Energy<>::Hp_Power_Unit  start_power, NVML_Energy<>::Hp_Power_Unit  end_power  )

inlineprivate

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::calc ( )

inlinevirtual

calculate the metric value between start() and stop().

Implements MeterPU::Measurement_Controller.

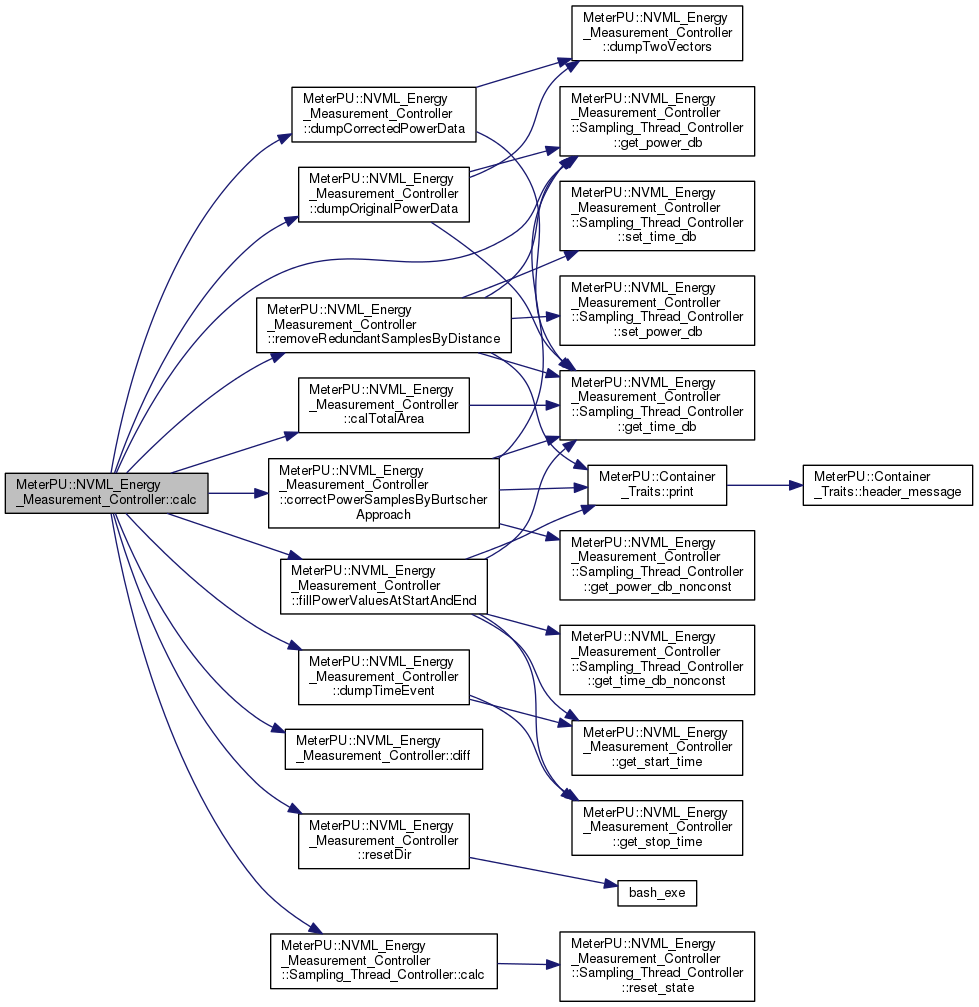

Here is the call graph for this function:

template<GPU_Device_Id_Type device_id>

NVML_Energy ::Energy_Unit MeterPU::NVML_Energy_Measurement_Controller< device_id >::calTotalArea ( )

inlineprivate

Here is the call graph for this function:

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

NVML_Energy ::Energy_Unit MeterPU::NVML_Energy_Measurement_Controller< device_id >::calTotalArea ( NVML_Energy<>::Hp_Power_DB_Type const &  power_db, NVML_Energy<>::Time_DB_Type const &  time_db  )

inlineprivate

Here is the call graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::correctPowerSamplesByBurtscherApproach ( )

inlineprivate

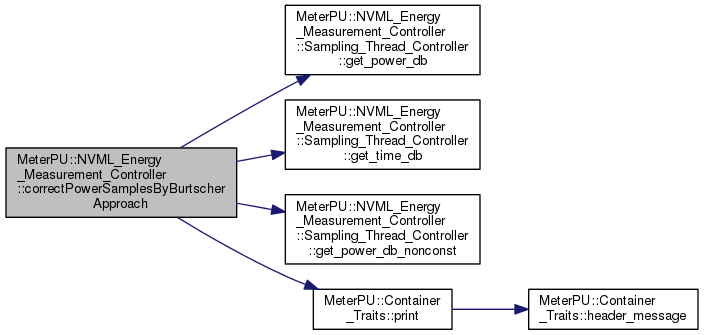

Here is the call graph for this function:

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

MeterPU::NVML_Energy_Measurement_Controller< device_id >::DECLARE_CLASS_NAME ( "NVML_Energy_Measurement_Controller< device_id >"  )

private

template<GPU_Device_Id_Type device_id>

CPU_Time::ResultType MeterPU::NVML_Energy_Measurement_Controller< device_id >::diff ( )

inlineprivate

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::dumpCorrectedPowerData ( )

inlineprivate

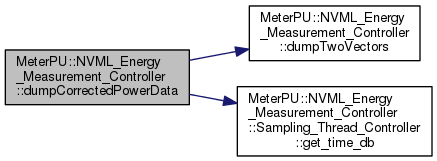

Here is the call graph for this function:

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::dumpOriginalPowerData ( ) const

inlineprivate

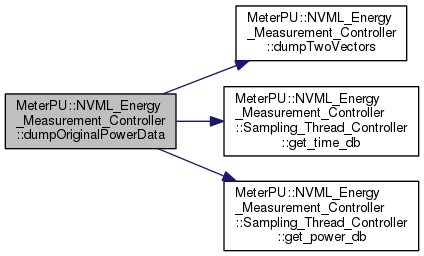

Here is the call graph for this function:

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::dumpTimeEvent ( )

inlineprivate

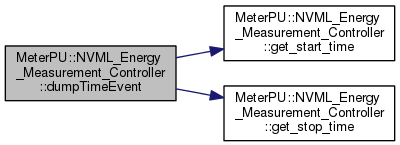

Here is the call graph for this function:

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

template<class T1 , class T2 >

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::dumpTwoVectors ( const std::string &  filename, const std::string &  header, const T1 &  keys, const T2 &  values  ) const

inlineprivate

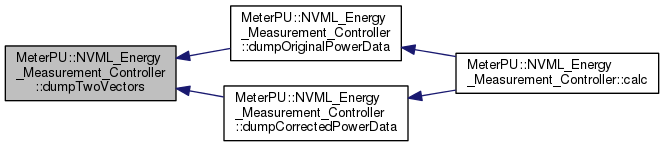

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::fillPowerValuesAtStartAndEnd ( )

inlineprivate

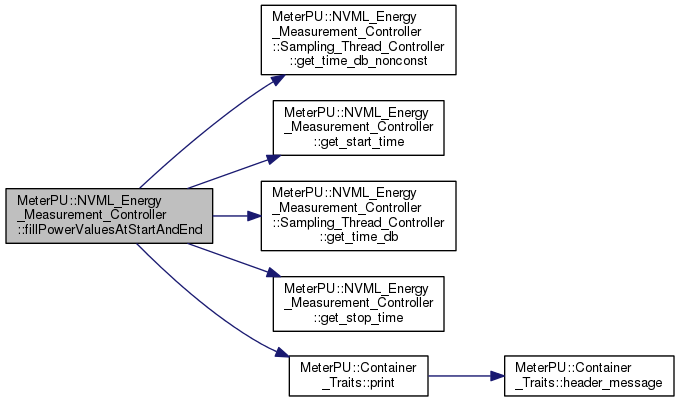

Here is the call graph for this function:

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

const CPU_Time::Time_Unit& MeterPU::NVML_Energy_Measurement_Controller< device_id >::get_start_time ( ) const

inlineprivate

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

const CPU_Time::Time_Unit& MeterPU::NVML_Energy_Measurement_Controller< device_id >::get_stop_time ( ) const

inlineprivate

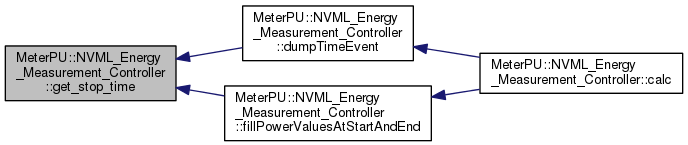

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

NVML_Energy ::Energy_Unit MeterPU::NVML_Energy_Measurement_Controller< device_id >::get_value ( ) const

inline

Get calculated metric value, require calc() to be called already.

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::init ( )

inline

Initialize a GPU device.

This function make if possible to initialize different CUDA GPUs if many exists.

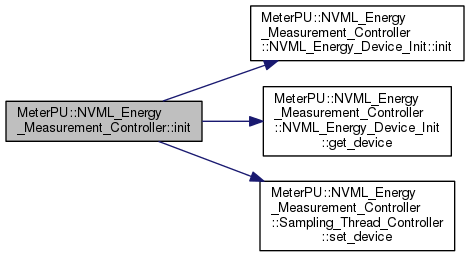

Here is the call graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::record_start_time ( )

inlineprivate

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::record_stop_time ( )

inlineprivate

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::removeRedundantSamplesByDistance ( const CPU_Time::ResultType &  time_distance_ms )

inlineprivate

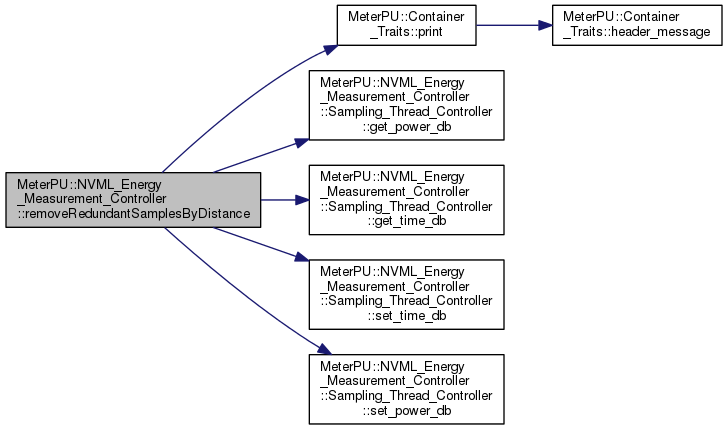

Here is the call graph for this function:

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::resetDir ( )

inlineprivate

Here is the call graph for this function:

Here is the caller graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::show_meter_reading ( ) const

inlinevirtual

Print the calculated metric value to standard output, requires an invocation of calc() already done.

Implements MeterPU::Measurement_Controller.

Here is the call graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::start ( )

inlinevirtual

mark the start of a measurement phase/period.

Implements MeterPU::Measurement_Controller.

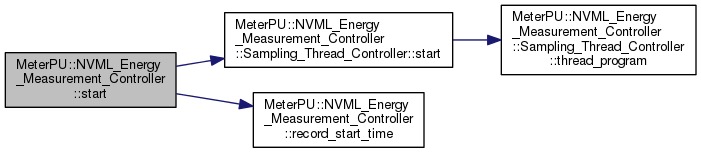

Here is the call graph for this function:

template<GPU_Device_Id_Type device_id>

void MeterPU::NVML_Energy_Measurement_Controller< device_id >::stop ( )

inlinevirtual

mark the end of a measurement phase/period.

Implements MeterPU::Measurement_Controller.

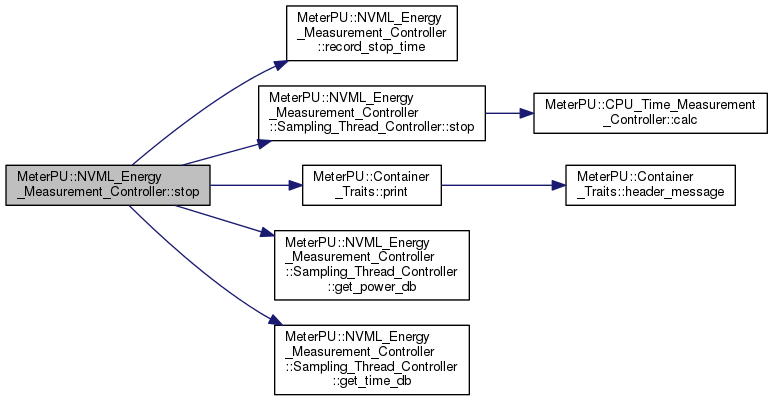

Here is the call graph for this function:

Member Data Documentation

template<GPU_Device_Id_Type device_id>

NVML_Energy ::Hp_Power_DB_Type MeterPU::NVML_Energy_Measurement_Controller< device_id >::correctedPowerDB

private

template<GPU_Device_Id_Type device_id>

nvmlDevice_t MeterPU::NVML_Energy_Measurement_Controller< device_id >::device

private

template<GPU_Device_Id_Type device_id>

NVML_Energy ::Energy_Unit MeterPU::NVML_Energy_Measurement_Controller< device_id >::meter_reading

private

template<GPU_Device_Id_Type device_id>

NVML_Energy_Device_Init MeterPU::NVML_Energy_Measurement_Controller< device_id >::nvml_energy_device_init

private

template<GPU_Device_Id_Type device_id>

std::string MeterPU::NVML_Energy_Measurement_Controller< device_id >::path

private

template<GPU_Device_Id_Type device_id>

Sampling_Thread_Controller MeterPU::NVML_Energy_Measurement_Controller< device_id >::sampling_thread_controller

private

template<GPU_Device_Id_Type device_id>

CPU_Time::Time_Unit MeterPU::NVML_Energy_Measurement_Controller< device_id >::start_time

private

template<GPU_Device_Id_Type device_id>

CPU_Time::Time_Unit MeterPU::NVML_Energy_Measurement_Controller< device_id >::stop_time

private

---

The documentation for this struct was generated from the following file:

• MeterPU.h
