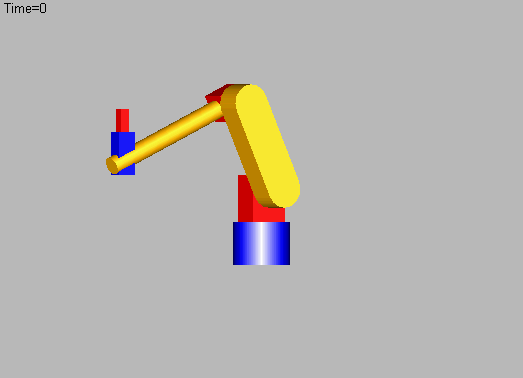

Animation view of robot (defined with Modelica model below):

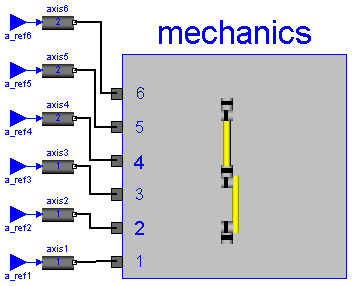

Composition diagram of overall structure of robot, with mechanical structure and axes models:

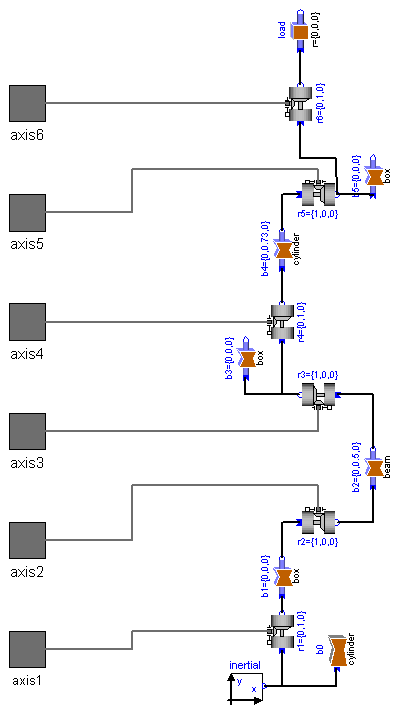

Composition diagram of mechanical structure of robot (6 joints and 6 bodies)

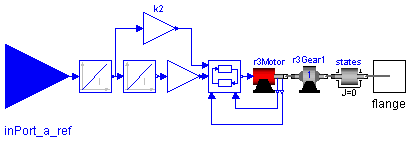

Composition diagram of one axis of the robot

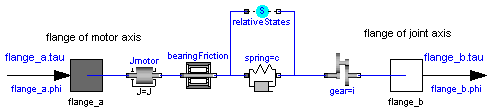

Composition diagram of gearbox with idea gear ratio, bearing friction, gear elasticity:
Composition diagram of electrical motor:

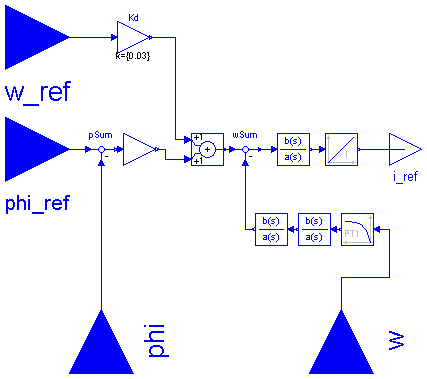

Composition diagram of controller:
