A class representing the Scan skeleton. More...

#include <scan.h>

Inheritance diagram for skepu::Scan< ScanFunc, T >:

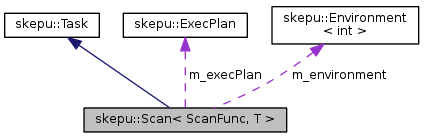

Collaboration diagram for skepu::Scan< ScanFunc, T >:

Public Member Functions
	Scan (ScanFunc *scanFunc)

	Scan (ScanFunc scanFunc, Vector< T > in, Vector< T > *out, ScanType type, T init=T())

	~Scan ()

void	run_async ()

void	operator() (Vector< T > &input, ScanType type, T init=T())

void	operator() (Vector< T > &input, Vector< T > &output, ScanType type, T init=T())

T	scanLargeVectorRecursively_CU (T input, T output, std::vector< DeviceMemPointer_CU< T > * > &blockSums, unsigned int numElements, int level, ScanType type, T init, int deviceID)

T	scanLargeVectorRecursively_CL (T input, T output, std::vector< DeviceMemPointer_CL< T > * > &blockSums, unsigned int numElements, int level, ScanType type, T init, Device_CL *deviceCL)

void	replaceText (std::string &text, std::string find, std::string replace)

void	createOpenCLProgram ()

Static Public Member Functions
static void	cpu_func (void buffers[], void arg)

static void	omp_func (void buffers[], void arg)

static void	cuda_func (void buffers[], void arg)

static void	opencl_func (void buffers[], void arg)

Detailed Description

template<typename ScanFunc, typename T>
class skepu::Scan< ScanFunc, T >

A class representing the Scan skeleton.

This class defines the Scan skeleton, also known as prefix sum. It is related to the Reduce operation but instead of producing a single scalar result it produces an output vector of the same length as the input with its elements being the reduction of itself all elements preceding it in the input. For example the input vector [4 3 7 6 9] would produce the result vector [4 7 14 20 29]. The Scan operation can either include or exclude the current element. It can be either inclusive or exclusive. In the previous example a inclusive scan was performed, the exclusive result would be [0 4 7 14 20]. Exclusive scan is sometimes called prescan. This Scan skeleton supports both variants by adding a parameter to the function calls, default is inclusive.

Once instantiated, it is meant to be used as a function and therefore overloading operator(). There are a few overloaded variants of this operator depending on if a seperate output vector is provided.

It uses StarPU as a backend and choice between different backends can be controlled by using defines. SKEPU_OPENMP can be used to use OpenMP whose support is currently limited in StarPU, hence not recommended, SKEPU_CUDA will register CUDA backend along other defined (atleast CPU if nothing else is defined) SKEPU_OPENCL will register OpenCL backend along other defined (atleast CPU if nothing else is defined) CUDA_ONLY will eliminate all other backends (even CPU) and will force StarPU to use CUDA only. if no above macro is defined, it will use sequential CPU backend.

Constructor & Destructor Documentation

template<typename ScanFunc , typename T >

skepu::Scan< ScanFunc, T >::Scan ( ScanFunc * scanFunc )

When creating an instance of the Scan skeleton, a pointer to a binary user function must be provided. Also the environment is set and if SKEPU_OPENCL is defined, the appropriate OpenCL program and kernel are created. Also creates a default execution plan which the skeleton will use if no other is specified.

Parameters

scanFunc A pointer to a valid binary user function. Will be deleted in the destructor.

References skepu::Environment< T >::getInstance().

Here is the call graph for this function:

template<typename ScanFunc , typename T >

skepu::Scan< ScanFunc, T >::Scan	(	ScanFunc *	scanFunc,
		Vector< T > *	in,
		Vector< T > *	out,
		ScanType	_type,
		T	_init = `T()`
	)

When creating an instance of the Scan skeleton, a pointer to a binary user function must be provided. Also the environment is set and if SKEPU_OPENCL is defined, the appropriate OpenCL program and kernel are created. Also creates a default execution plan which the skeleton will use if no other is specified. This constructor is used to assist in calling scan skeleton in a task-parallel skeleton(e.g. farm) by implementing Task class "run_async()" method. The parameters for scan call should be specified before e.g. using this constructor.

Parameters

scanFunc	A pointer to a valid binary user function. Will be deleted in the destructor.
in	A pointer to a input `Vector` object.
out	A pointer to a output `Vector` object.
_type	A `ScanType` object specifying scan type (INCLUSIVE, EXCLUSIVE).
_init	An variable specifying initial value incase INCLUSIVE `ScanType` is used.

References skepu::Environment< T >::getInstance().

Here is the call graph for this function:

template<typename ScanFunc , typename T >

skepu::Scan< ScanFunc, T >::~Scan ( )

When the Scan skeleton is destroyed, it deletes the user function it was created with. Furthermore, it destroy OpenCL handler and performance model objects (if created) and StarPU codelet.

Member Function Documentation

template<typename ScanFunc , typename T >

void skepu::Scan< ScanFunc, T >::cpu_func	(	void *	buffers[],
		void *	arg
	)

static

A static function used with StarPU codelet for applying Scan and is called by the StarPU if CPU backend is selected for a skeleton invocation.

Parameters

buffers	Contain all StarPU managed data which in this case consists of atmost two buffers.
arg	A read only argument which is used to pass handler to the object as this is a static function.

template<typename ScanFunc , typename T >

void skepu::Scan< ScanFunc, T >::createOpenCLProgram ( )

A function called by the constructor. It creates the OpenCL program for the skeleton and saves the kernel name. The program is built from a string containing the user function (specified when constructing the skeleton) and a generic Scan kernel. The type and function names in the generic kernel are relpaced by user function specific code before it is compiled by the OpenCL JIT compiler. The Scan kernel actually is two kernels which both have their handles saved. The actual scan kernel and a uniform add kernel to add the block sums produced by scanning

Also handles the use of doubles automatically by including "#pragma OPENCL EXTENSION cl_khr_fp64: enable" if doubles are used.

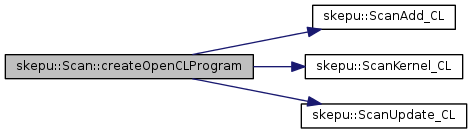

References skepu::ScanAdd_CL(), skepu::ScanKernel_CL(), and skepu::ScanUpdate_CL().

Here is the call graph for this function:

template<typename ScanFunc , typename T >

void skepu::Scan< ScanFunc, T >::cuda_func	(	void *	buffers[],
		void *	arg
	)

static

A static function used with StarPU codelet for applying Scan and is called by the StarPU if CUDA backend is selected for a skeleton invocation.

Parameters

buffers	Contain all StarPU managed data which in this case consists of atmost two buffers.
arg	A read only argument which is used to pass handler to the object as this is a static function.

References skepu::Scan< ScanFunc, T >::scanLargeVectorRecursively_CU().

Here is the call graph for this function:

template<typename ScanFunc , typename T >

void skepu::Scan< ScanFunc, T >::omp_func	(	void *	buffers[],
		void *	arg
	)

static

A static function used with StarPU codelet for applying Scan and is called by the StarPU if OpenMP backend is selected for a skeleton invocation.

Parameters

buffers	Contain all StarPU managed data which in this case consists of atmost two buffers.
arg	A read only argument which is used to pass handler to the object as this is a static function.

template<typename ScanFunc , typename T >

void skepu::Scan< ScanFunc, T >::opencl_func	(	void *	buffers[],
		void *	arg
	)

static

A static function used with StarPU codelet for applying Scan and is called by the StarPU if OpenCL backend is selected for a skeleton invocation.

Parameters

buffers	Contain all StarPU managed data which in this case consists of atmost two buffers.
arg	A read only argument which is used to pass handler to the object as this is a static function.

References skepu::Scan< ScanFunc, T >::scanLargeVectorRecursively_CL().

Here is the call graph for this function:

template<typename ScanFunc , typename T >

void skepu::Scan< ScanFunc, T >::operator()	(	Vector< T > &	input,
		ScanType	type,
		T	init = `T()`
	)

Performs the Scan on a whole Vector. With itself as output.

Depending on which backend was used, appropriate backend will be registered. In case of multiple backends (e.g. CPU and CUDA) StarPU will decide at runtime which one to use.

Parameters

input	A vector which will be scanned. It will be overwritten with the result.
type	The scan type, either INCLUSIVE or EXCLUSIVE.
init	The initialization value for exclusive scans.

template<typename ScanFunc , typename T >

void skepu::Scan< ScanFunc, T >::operator()	(	Vector< T > &	input,
		Vector< T > &	output,
		ScanType	type,
		T	init = `T()`
	)

Performs the Scan on a whole Vector. With a seperate Vector as output.

Depending on which backend was used, appropriate backend will be registered. In case of multiple backends (e.g. CPU and CUDA) StarPU will decide at runtime which one to use.

Parameters

input	A vector which will be scanned.
output	The result vector, will be overwritten with the result and resized if needed.
type	The scan type, either INCLUSIVE or EXCLUSIVE.
init	The initialization value for exclusive scans.

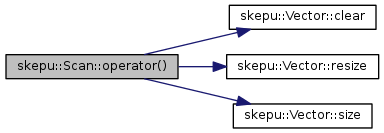

References skepu::Vector< T >::clear(), skepu::Vector< T >::resize(), and skepu::Vector< T >::size().

Here is the call graph for this function:

template<typename ScanFunc , typename T >

void skepu::Scan< ScanFunc, T >::replaceText	(	std::string &	text,
		std::string	find,
		std::string	replace
	)

A helper function used by createOpenCLProgram(). It finds all instances of a string in another string and replaces it with a third string.

Parameters

text	A `std::string` which is searched.
find	The `std::string` which is searched for and replaced.
replace	The relpacement `std::string`.

template<typename ScanFunc , typename T >

void skepu::Scan< ScanFunc, T >::run_async ( )

virtual

This is an abstract method defined in the Task class which every data-parallel skeleton implements to allow itself to be used within task-parallel skeletons (e.g. farm). It relies on the fact that parameters for the function call are already provided e.g. via constructor or setter methods available in the public interface of the class.

Implements skepu::Task.

template<typename ScanFunc , typename T >

T skepu::Scan< ScanFunc, T >::scanLargeVectorRecursively_CL	(	T *	input,
		T *	output,
		std::vector< DeviceMemPointer_CL< T > * > &	blockSums,
		unsigned int	numElements,
		int	level,
		ScanType	type,
		T	init,
		Device_CL *	deviceCl
	)

Scans a Vector using the same recursive algorithm as NVIDIA SDK. First the vector is scanned producing partial results for each block. Then the function is called recursively to scan these partial results, which in turn can produce partial results and so on. This continues until only one block with partial results is left.

Parameters

input	Pointer to the device memory where the input vector resides.
output	Pointer to the device memory where the output vector resides.
blockSums	A Vector of device memory pointers where the partial results for each level is stored.
numElements	The number of elements to scan.
level	The current recursion level.
type	The scan type, either INCLUSIVE or EXCLUSIVE.
init	The initialization value for exclusive scans.
deviceID	Integer deciding which device to utilize.

References skepu::DeviceMemPointer_CL< T >::getDeviceDataPointer().

Here is the call graph for this function:

template<typename ScanFunc , typename T >

T skepu::Scan< ScanFunc, T >::scanLargeVectorRecursively_CU	(	T *	input,
		T *	output,
		std::vector< DeviceMemPointer_CU< T > * > &	blockSums,
		unsigned int	numElements,
		int	level,
		ScanType	type,
		T	init,
		int	deviceID
	)

Scans a Vector using the same recursive algorithm as NVIDIA SDK. First the vector is scanned producing partial results for each block. Then the function is called recursively to scan these partial results, which in turn can produce partial results and so on. This continues until only one block with partial results is left.

Parameters

input	Pointer to the device memory where the input vector resides.
output	Pointer to the device memory where the output vector resides.
blockSums	A Vector of device memory pointers where the partial results for each level is stored.
numElements	The number of elements to scan.
level	The current recursion level.
type	The scan type, either INCLUSIVE or EXCLUSIVE.
init	The initialization value for exclusive scans.
deviceID	Integer deciding which device to utilize.

References skepu::DeviceMemPointer_CU< T >::getDeviceDataPointer().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

include_starpu/skepu/scan.h
include_starpu/skepu/src/scan.inl
include_starpu/skepu/src/scan_cl.inl
include_starpu/skepu/src/scan_cpu.inl
include_starpu/skepu/src/scan_cu.inl
include_starpu/skepu/src/scan_omp.inl
